Installation Requirements

Cala is designed to work in most homes, but there are a few things to check before you reserve. Here’s how to know if it’s a good fit for your space and setup.

1. SPACE & CLEARANCE

Cala is 24 inches in diameter and 67 inches tall. It needs:

  • 34 inches x 34 inches of floor space (includes 10 inches of air outlet clearance)
  • 77 inches of height clearance (includes 10 inches of air inlet clearance)
  • 700 cubic feet of room volume; rooms below this size may require ducting
  • A flat, indoor location like a basement, garage, or utility room
  • Access to nearby drainage or a condensate pump

2. HOT WATER CAPACITY

Cala’s 65-gallon tank is designed for households of up to five people, with built-in intelligence and a mixing valve that delivers up to 50% more usable hot water when needed.

3. NOISE & AIR CIRCULATION

Cala produces cool, dry air and runs at 49–52 dBA—similar to the sound of a refrigerator. You can set quiet hours to avoid certain times of day, but Cala will still need to run regularly. It’s best placed in a space where airflow is welcome and occasional noise won’t be disruptive.

4. ELECTRICAL

Cala requires a 240V, 30 amp double pole breaker. If you're replacing an electric water heater, the existing circuit most likely suffices. If you're replacing a fossil fuel water heater, you may need a to add a circuit, which is straightforward in most, but not all, homes. Consult a licensed professional if you're unsure of your setup.

Specifications & Warranty

MODEL INFORMATION

Model
RDH6524M1
Refrigerant
R-513a
Compressor
Variable Speed
Tank
Glass-lined carbon steel
Insulation
2” non-CFC polyurethane
Nominal Dimensions
24” diameter
67” height
Shipping Dimensions
32” x 32” x 72”
Dry (Shipping) Weight
287 lbs

PLUMBING

Water Connections
3/4” Male NPT
Condensate
Connection
3/4” Male NPT
Flow Sensor
Integrated
Mixing Valve
Integrated
Leak Detection
Integrated

PERFORMANCE

Tank Capacity
65 Gallons (Nominal)
61 Gallons (Rated)
Compressor Output
1,000W - 1,8000W
Heat Elements
4,500W Upper
4,500W Lower
UEF
3.76
First Hour Rating
78 Gallons
Sound
*Internal Test results based on NEEA v6.0 Appendix D Test Method at 55Hz
48 dBa
Heat Pump Ambient
Operating Range
37-120F

ELECTRICAL

Power
240V/60Hz/1-Phase
Breaker Size
30A Double Pole

CONNECTIVITY

Connectivity
WiFi, LPWAN, Bluetooth
Smartphone App
iOS and Android
User Interface
On-unit or via Cala app

Warranty

  • 10-year warranty on the tank and internal parts
  • 3 years of labor coverage with Cala Pro Contractor Installation
  • Fully transferable—adds value when you sell, since coverage stays with the home

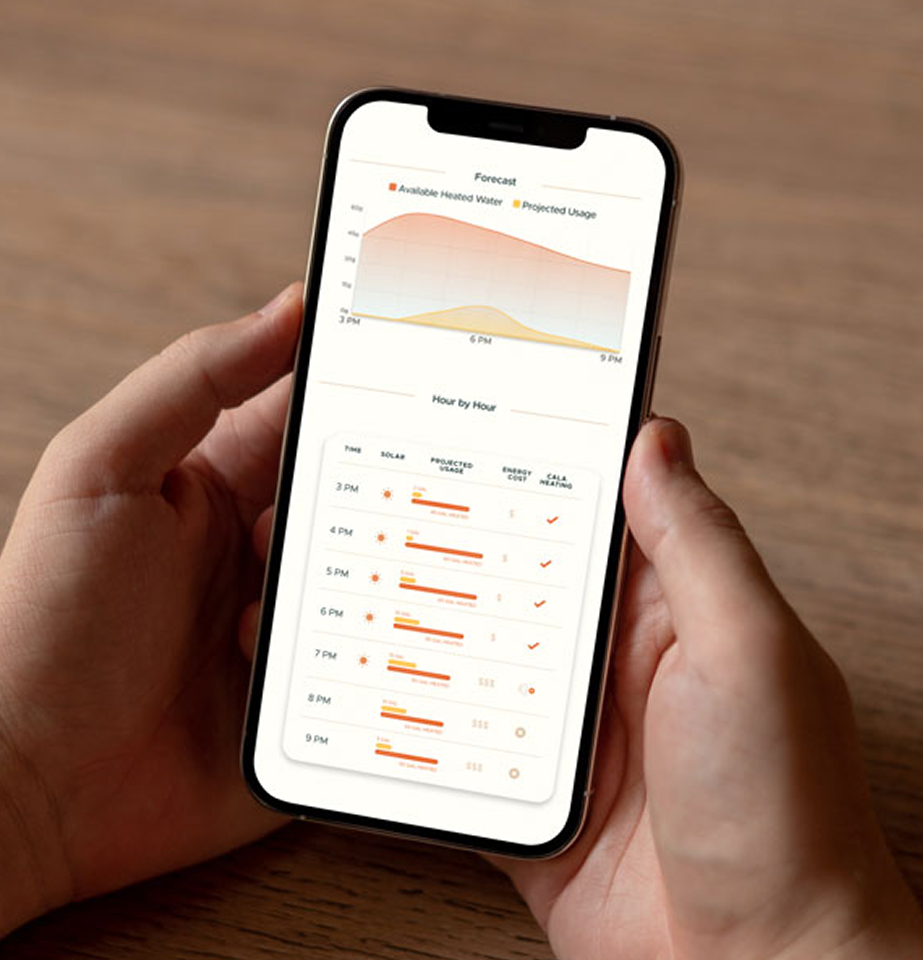

Cala's easy-to-use app harnesses our advanced hardware and predictive intelligence.

Our mobile apps for iOS and Android provide full control over your water heater, keeping you informed about its status anytime, anywhere.

CALA SMART PREFERENCES

Customize your settings for maximum efficiency and comfort.

  • Reduce Carbon Footprint

    Heat your water when local electricity has the lowest carbon emissions. Reduce your carbon footprint now and even more as the grid gets cleaner.

  • Solar Sync

    Maximize your water heater's use of solar power and grid energy based on current prices.

  • Variable Pricing

    Heat your water when electricity prices are lowest to save money. Cala adapts to your preferences, ensuring maximum efficiency and cost savings while providing hot water when you need it.

  • Cala Community Power

    Join other Cala homes to support your regional electric grid. Earn money, lower emissions, and help keep the lights on during peak demand.

  • Storm Preparation Heating

    Set your Cala unit to maximize preheating before potential outages due to weather or other events.

  • Manage Sound & Air

    Manage when your unit operates to minimize noise and enhance comfort in your home.

Some features may not be available in all locations.

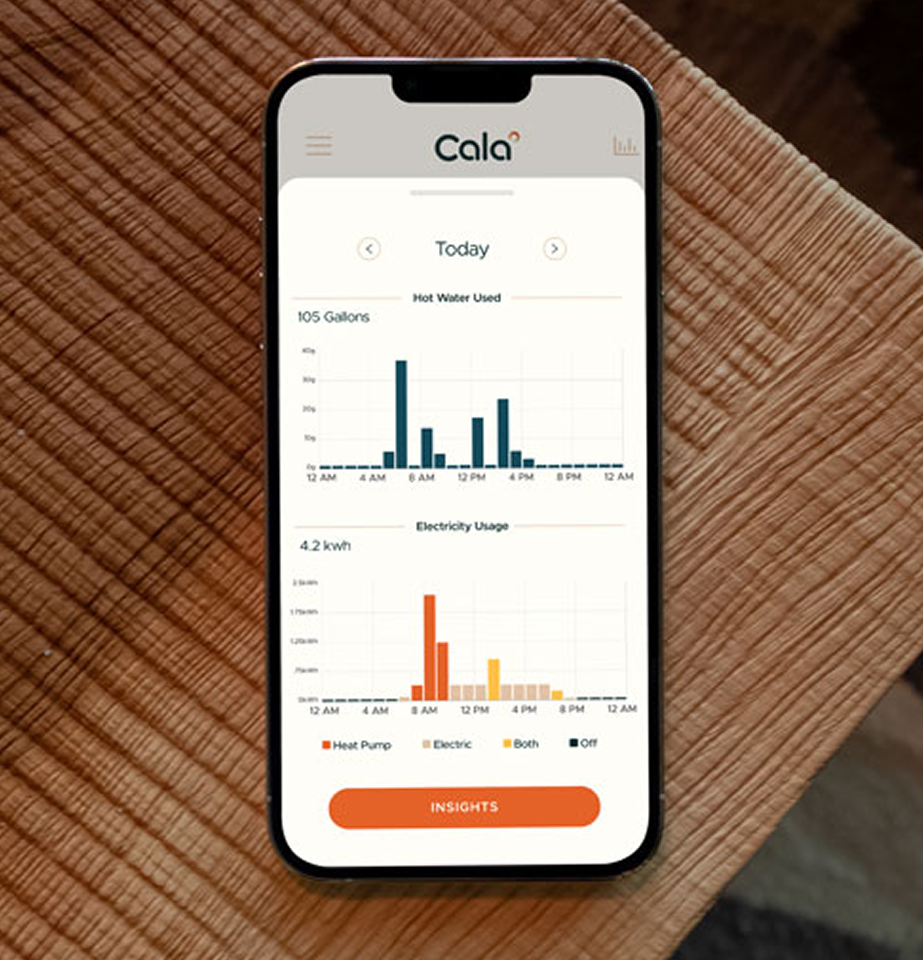

CALA INSIGHTS AND USAGE

Stay informed with real-time data and historical trends for better management.

  • Real-Time Water Availability

    Instantly check current hot water levels.

  • Real-Time Electricity Usage

    Monitor your water heater's electricity usage in real-time.

  • Historical Water Usage Review

    Track and analyze your past water consumption patterns.

  • Historical Electricity Usage Review

    Review and monitor your water heater's electricity usage over time


COMPREHENSIVE MANAGEMENT

Effortlessly control your household's water heating needs.

  • Share Access with Family

    Easily share control and access with other members of your household.

  • Manage Multiple Homes

    Use the app to manage Cala heat pump water heaters in multiple homes.

  • Manage Multiple Units

    Manage multiple Cala heat pump water heaters in the same home from the app.
